CHAdeMO to CCS2 Adapter (GCC EV)

Never miss a charge. Our CCS2 to CHAdeMO Adapter is the key that unlocks thousands of legacy DC fast-charging stations for your modern electric vehicle. Designed for EVs with a CCS2 (Type 2 Combo) charging port, this adapter allows you to connect to the extensive network of CHAdeMO fast chargers, providing critical flexibility and peace of mind on the road.

Engineered for safety and high-power performance, this robust adapter meets stringent industrial specifications. It features a durable, flame-retardant thermoplastic shell and high-quality silver-plated conductors to ensure efficient power transfer and reliable operation in various conditions, from daily use to long-distance travel.

Key Features & Specifications:

Unlock Legacy Networks: Enables CCS2-equipped vehicles to charge at CHAdeMO DC fast-charging stations. Essential for accessing older charging infrastructure.

High-Power Ready: Rated for up to 250A Max current and 1000V DC Max voltage, facilitating fast charging sessions where CCS2 stations may be unavailable.

Built for Safety & Durability:

Fire-Resistant Housing: Thermoplastic shell with a UL94 V-0 rating for superior flame retardancy.

Weather-Sealed Design: High waterproof grade provides protection against the elements.

Efficient Power Transfer: Silver-plated copper alloy conductors ensure minimal voltage drop and heat generation (Contact Impedance: ≤0.5 mΩ).

Reliable Performance:

Robust Thermal Design: Engineered to manage heat for safe, sustained high-power delivery.

User-Friendly Operation: Designed for manageable insertion and extraction force.

Portable Solution: Compact and sturdy design (Size: ~270.5 x 97 x 140.26 mm | Weight: 1.6 kg) makes it easy to store in your frunk or cargo area as an essential backup.

What’s Included:

• 1 x CCS2 to CHAdeMO Adapter Unit

• Clear User Instructions & Safety Guide

• Protective Storage Case

How It Works & Compatibility:

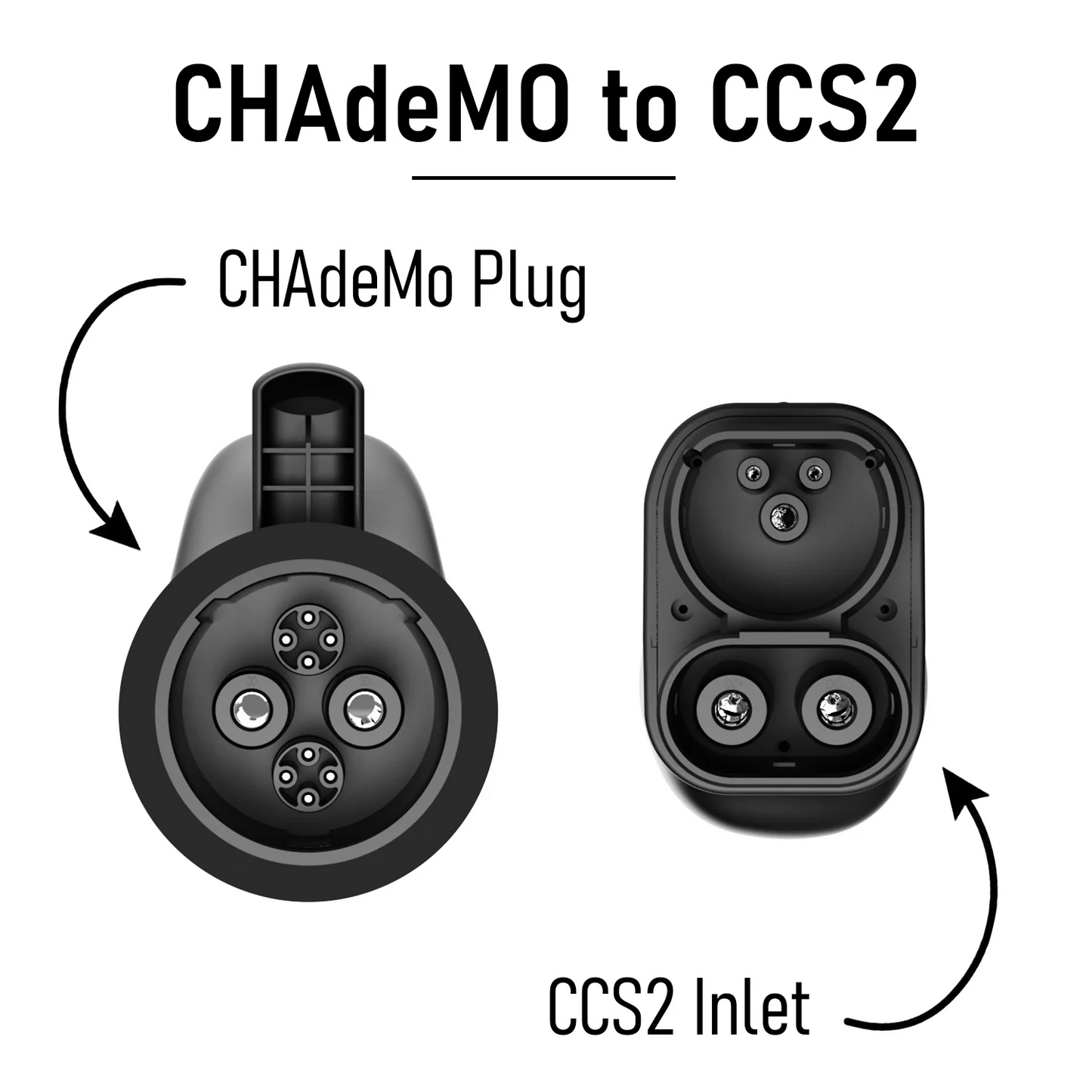

Adapter Function: This adapter has a CHAdeMO connector (plug) on one end and a CCS2 socket (inlet) on the other.

Connection Steps:

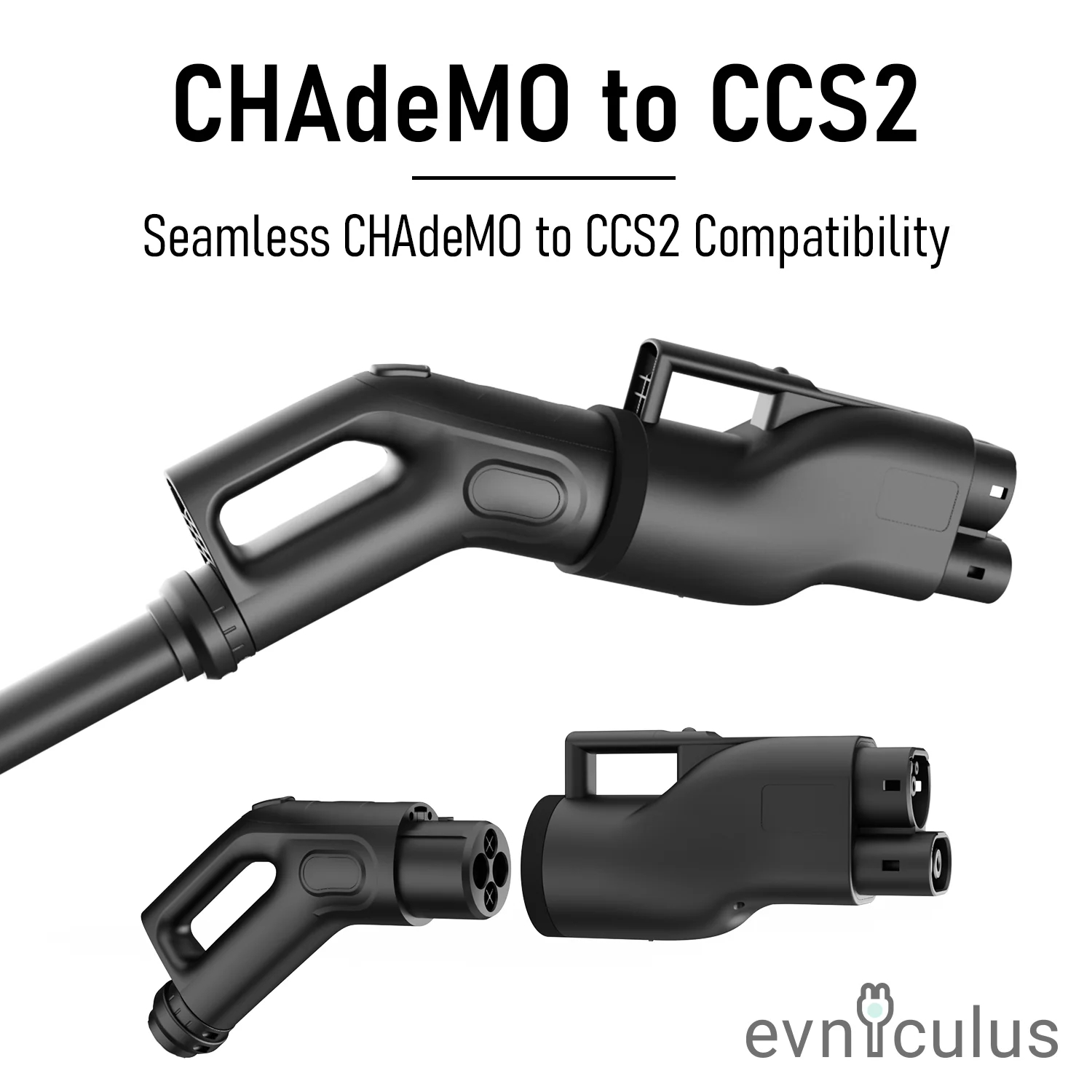

Plug the adapter's CHAdeMO connector into the CHAdeMO DC fast charger.

Take your vehicle's standard CCS2 charging cable and plug it into the adapter's CCS2 socket.

Follow the normal charging initiation process on the station.

Critical Compatibility Notice: This adapter contains active electronics to translate between the different communication protocols (CCS vs. CHAdeMO). Compatibility is not universal. It is essential to verify that the adapter is confirmed to work with your specific vehicle make, model, and year before purchase. Some vehicles may require a software update or may not support protocol translation. Always consult your vehicle manufacturer's guidance.

Technical Specifications at a Glance:

Ideal For:

CCS2 EV owners traveling in regions with strong CHAdeMO infrastructure

Drivers needing a reliable backup plan when planned CCS2 chargers are occupied or out of service.

EV enthusiasts and professionals who require maximum charging network access.

Fleet operators with CCS2 vehicles that occasionally need to use legacy charging sites.
