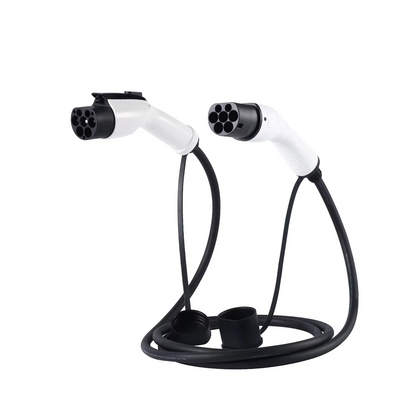

Type 2 to GBT Cable 22kW (China/GBT)

Name: Type 2 to GBT Cable 22kW (China/GBT)
Brand: EV For Less
SKU: SKU017
Price: 599.00 AED
Availability: InStock

Dhs. 599.00

~~Dhs. 700.00~~ Dhs. 599.00

Sale Sold out

Shipping calculated at checkout.

Compatibility: For Chinese cars with GBT charging port (Like ID4/6, BYD, Leopard, ROX & Others)

Usage: Use to charge Chinese cars from Type 2 charging stations in the GCC.

Technical Data:

Category	Parameter	Specification
General	Design Standard	IEC 62196-2
	RoHS Compliant	Yes
	Protection Class	IP55
Electrical	Rated Current	32A/Phase
	Operating Voltage	240/400V AC
	Rated Power	7/22kW
	Insulation Resistance	>1000MΩ (Measured at DC500V)
	Contact Resistance	0.5m Max
	Withstand Voltage	2500V
	Static Resistance (RC)	680Ω Tolerance: ±3%, ≥0.5%
Mechanical	Coupled Insertion Force	<80N
	Working Environment Temp.	−40C to +60C
	Plastic Shell Fire Rating	UL94 V-0
Materials	Housing	PC+ABS
	Gun Head	PA66+20%GF
	Conductor	Copper alloy, silver-plated surface
