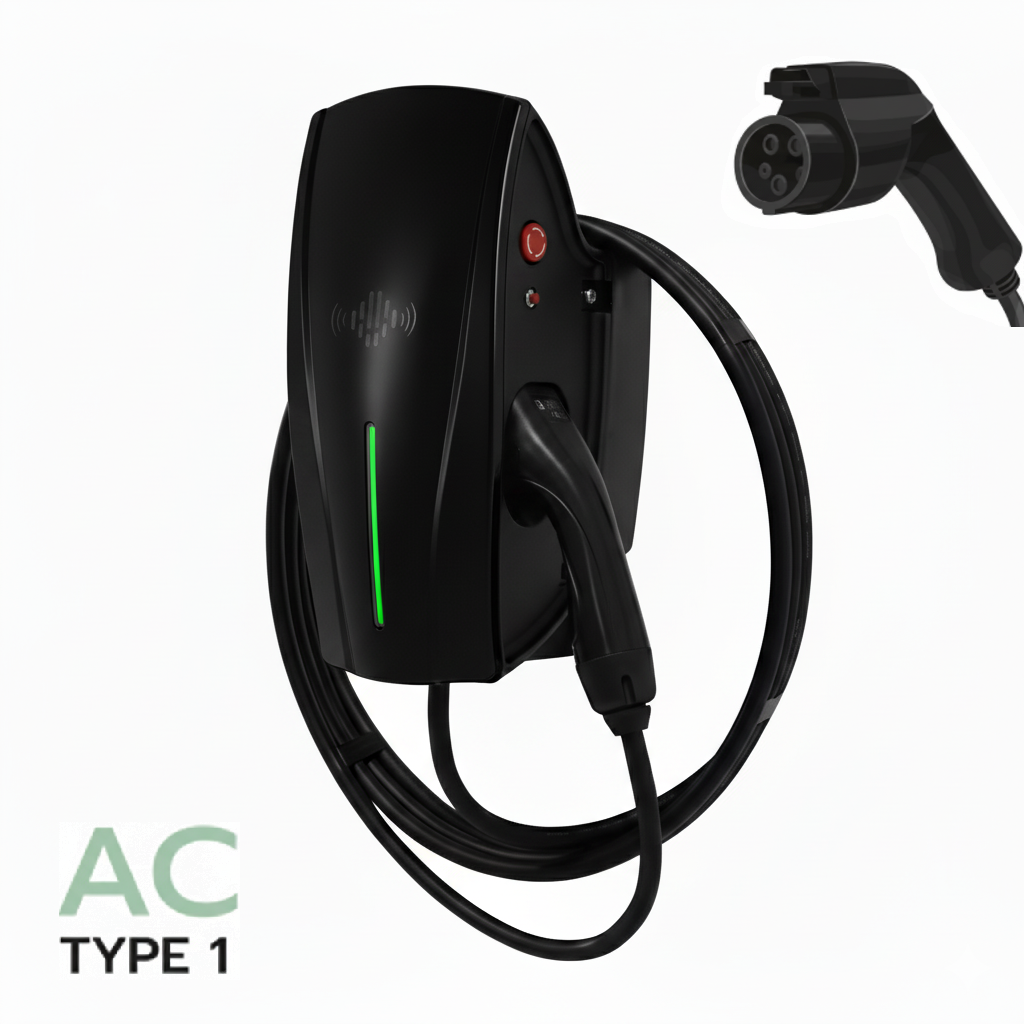

Upgrade your EV charging experience with this Premium Smart Wall-Mounted EV Charger, designed for safety, performance, and smart control. Perfect for home or business use — fast, reliable, and easy to use. For American and Korean EVs like Nissan Leaf, Chevy Bolt, Ford, Hyundai Ioniq, Kia, and More Type-1 EVs
🔑 Key Features
✅ Powerful & Efficient
Delivers up to 7.4 kW single-phase AC charging (32 A max) — ideal for most electric vehicles.
✅ Smart Connectivity
Control your charger remotely via WiFi, Bluetooth, or Ethernet.
Supports RFID access and OCPP 1.6J for smart integration.
✅ Flexible Operation
Use Plug & Play mode or start charging via the mobile app.
Schedule your charging sessions and monitor real-time energy usage directly from your phone.
✅ Comprehensive Safety Protection
Equipped with:
Type A 30 mA + DC 6 mA residual current protection
Over-voltage & under-voltage protection
Over-current & over-temperature protection
Lightning, short circuit & contactor adhesion protection
Anti-welding protection to prevent connector damage
Emergency Stop function for added safety
✅ Weatherproof & Durable
Built with an IP65-rated enclosure, suitable for indoor and outdoor installation.
Operates reliably in extreme temperatures from -25 °C to +55 °C.
✅ Easy Installation & Use
Comes with a 5 m tethered cable (GBT plug) and 2 RFID cards.
Compact design with wall-mount bracket included.
📦 Specifications
| Specification |
Details |
| Working Voltage |
AC (230 V ±10%) – Single Phase |
| Max Power |
7.4 kW |
| Max Current |
32 A |
| Frequency |
50/60 Hz |
| Communication |
WiFi / Bluetooth / Ethernet / RFID / OCPP 1.6J |
| Protection Rating |
IP65 |
| Operating Temperature |
-25 °C ~ +55 °C |
| Cable Length |
5 m (Tethered) |
| Plug Type |
J1772 (Type-1) |
| Accessories |
2 RFID Cards, User Manual, Mounting Kit |
