Type 2 to GB/T Adapter Guide: Charging Chinese EVs in the UAE

Chinese-market EVs are increasingly common in the UAE, but their charging connectors may not match the Type 2 equipment found at many homes, workplaces, and public AC charging points. A Type 2-to-GB/T adapter can help in the right setup, but choosing the wrong adapter can lead to a cable that does not fit, a vehicle that will not start charging, or an unsafe and disappointing result.

This guide explains when a Type 2-to-GB/T adapter is appropriate, how to check your vehicle, why GB/T AC and GB/T DC must be treated separately, and what to confirm before ordering. You can browse our EV Charging Adapters collection or compare charging equipment in our EV Chargers collection.

Quick answer: do you need a Type 2-to-GB/T adapter?

You may need a Type 2-to-GB/T AC adapter when your vehicle has a GB/T AC inlet and the charging station or wall charger provides Type 2 AC. The adapter connects the Type 2 charger side to the GB/T vehicle side, subject to the adapter's current rating and communication compatibility.

You do not use a standard Type 2-to-GB/T AC adapter for DC fast charging. GB/T AC and GB/T DC are different systems with different physical connectors and charging functions. A vehicle with a GB/T DC inlet needs a compatible DC charging solution, not an AC adapter.

What is the difference between GB/T AC and GB/T DC?

Charging type	Typical use	Adapter guidance
GB/T AC	Home wall chargers, workplace charging, and slower public AC charging	May work with a compatible Type 2-to-GB/T AC adapter
GB/T DC	DC fast charging and higher-power public charging	Requires a compatible DC setup or DC Adapter (CCS2 to GBT); a Type 2-to-GB/T AC adapter is not suitable

The vehicle may have separate AC and DC inlets, or a charging arrangement that looks different from the European Type 2/CCS2 layout. Check the vehicle handbook, inlet markings, and exact market specification before purchasing.

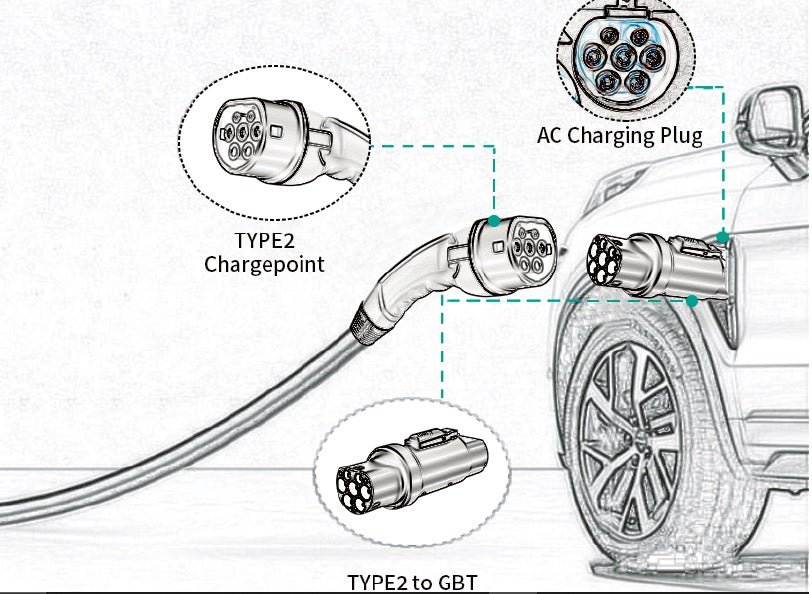

How a Type 2-to-GB/T AC adapter works

In a compatible setup, the Type 2 side connects to the AC charging station or wall charger, while the GB/T side connects to the vehicle's GB/T AC inlet. The adapter provides the physical interface and must support the relevant control-pilot, proximity, current, and safety functions for the vehicle and charger to begin a session.

An adapter does not change the vehicle's onboard AC charger. If the vehicle accepts 7kW AC, an adapter and a 22kW Type 2 charger will not make it charge at 22kW. The actual rate is limited by the vehicle, the charger, the electrical supply, the cable, and the adapter.

Check these details before you order

1. Exact vehicle make and model: The same badge can have different charging connectors in different markets or model years.
2. Vehicle market version: Confirm that the car is a Chinese domestic-market specification or another version that uses GB/T.
3. AC inlet type: Verify that you need GB/T AC, not only GB/T DC.
4. Charger-side connector: Confirm that the wall box or public station provides Type 2 AC, and whether it has a socket or a tethered cable.
5. Maximum AC charging rate: Check the vehicle's onboard AC limit and the adapter's rated current.
6. Phase and current requirements: Confirm whether the vehicle and charger setup use single-phase or three-phase AC and what current is supported.
7. Physical clearance: Check that the adapter can be plugged in without placing strain on the vehicle inlet or charging cable.
8. Operating environment: For outdoor UAE use, consider enclosure protection, heat, dust, cable weight, and secure handling.

Type 2 socket versus tethered Type 2 cable

A Type 2 wall charger may have a socket where you plug in a separate Type 2 cable, or it may have a permanently attached Type 2 cable. The adapter must match the charger-side arrangement.

For a socketed charger, the normal setup may be a Type 2-to-GB/T cable or a Type 2 cable paired with a compatible adapter, depending on the product design. For a tethered charger, the adapter needs a GB/T vehicle connection on one side and the appropriate Type 2 connection on the charger side. Do not assume that every product described as Type 2-to-GB/T fits both setups.

Before buying, confirm whether the product is designed for a Type 2 socket, a Type 2 plug, or a tethered Type 2 charging lead. If the listing is unclear, send the charger and vehicle details before ordering.

How fast will your Chinese EV charge?

The adapter does not determine the vehicle's complete charging speed. The practical rate depends on:

• The car's onboard AC charger
• The wall charger or public AC station
• The available single-phase or three-phase supply
• The adapter's current rating
• The charging cable's rating
• Battery state, temperature, and vehicle charging controls

For example, a vehicle with a 7kW onboard charger will normally remain limited to around that level even when connected to a higher-rated Type 2 supply. Check the manufacturer's specification rather than choosing an adapter based only on the wall charger's headline power.

Why some adapters connect but do not start charging

A physical fit is only the first check. Charging may fail if the adapter does not support the required pilot communication, if the charger expects a different cable arrangement, if the vehicle has a separate GB/T AC and DC inlet, or if the vehicle and charger detect an incompatible current or safety condition.

Charging can also be affected by the station's access controls, earthing, residual-current protection, firmware, or a damaged connector. Never force a connection or use an adapter that becomes unusually hot, shows damage, or does not lock correctly.

Can a Type 2-to-GB/T adapter be used for DC fast charging?

Not a standard AC adapter. AC charging and DC fast charging use different power paths, control systems, and safety requirements. A Type 2-to-GB/T AC adapter is intended for compatible Type 2 AC charging and should not be used as a shortcut for a GB/T DC connection.

If your vehicle needs GB/T DC charging, confirm the DC connector and charging protocol separately. Some imported vehicles may require a specialised, vehicle-compatible DC adapter or a charger that natively supports the required standard. Check the vehicle and charger specifications before attempting a high-power DC session.

Using an adapter at home in the UAE

For home charging, first confirm the wall charger's Type 2 configuration, the vehicle's GB/T AC inlet, and the electrical installation. A suitable adapter does not replace a safe dedicated circuit, correct protection, proper earthing, or a qualified installation.

Keep the adapter protected from standing water, excessive heat, vehicle movement, and cable strain. Store it clean and dry, inspect the contacts regularly, and stop using it if the housing, pins, locking mechanism, or cable connection shows damage.

Using an adapter at public AC chargers

Public charging stations may have different cable arrangements, current limits, access requirements, and physical clearances. Check whether the station offers Type 2 AC and whether its tethered cable can accept the adapter you intend to use.

Some public chargers may stop a session if the vehicle does not complete the expected handshake or if the connection is not locked securely. Keep the station's support contact available, and do not leave a heavy adapter hanging from the vehicle inlet without proper support.

Common Type 2-to-GB/T adapter mistakes

• Buying an AC adapter for a vehicle that needs GB/T DC.
• Assuming every Chinese EV uses the same GB/T inlet or charging behaviour.
• Choosing an adapter from the charger rating without checking the vehicle's AC limit.
• Ignoring whether the Type 2 side is for a socket or a tethered cable.
• Using an adapter without checking current, phase, pilot, and safety compatibility.
• Forcing a connector that does not lock or fit smoothly.
• Using a damaged or overheated adapter.

What information should you send before ordering?

For a compatibility check, provide the exact vehicle make, model, model year, country or market version, a clear photo of the charging inlet, and the charger or public station you plan to use. Include whether the charger has a Type 2 socket or a tethered cable and whether you want AC home charging or DC fast charging.

These details are more useful than the vehicle brand alone. If the vehicle has separate AC and DC inlets, photograph both or identify them from the handbook.

Final recommendation

A Type 2-to-GB/T adapter can be a convenient way to connect a compatible Chinese-market EV to Type 2 AC charging in the UAE, but compatibility must be checked before purchase. Confirm the AC connector, charger-side arrangement, current rating, communication functions, vehicle charging limit, and installation conditions. Treat GB/T DC as a separate requirement.

Browse our EV Charging Adapters collection for adapter options and our EV Chargers collection for home and AC charging equipment. If any part of the setup is uncertain, send the exact vehicle and charger details before ordering.
