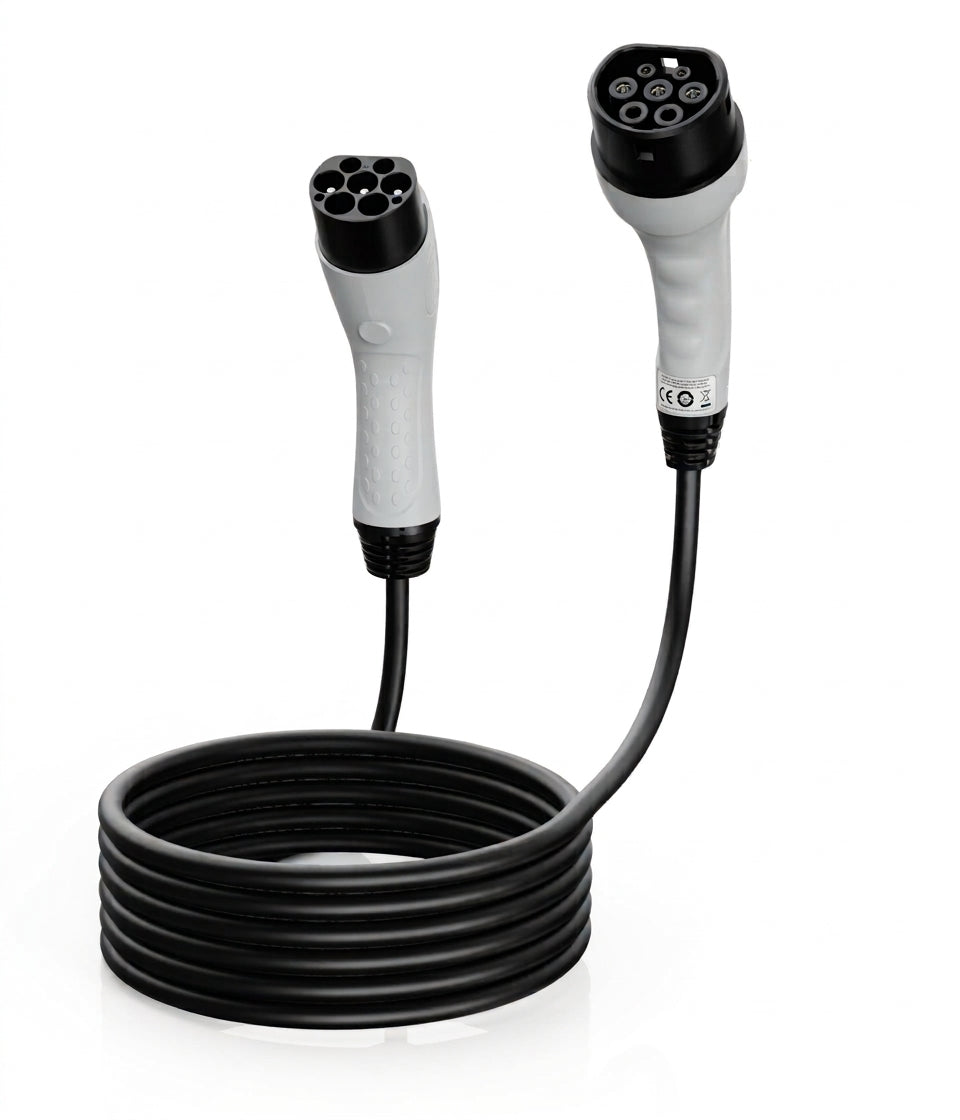

GBT to GBT Extension Cable 5m, 7kW (China/GBT)
GBT to GBT Extension Cable 5m, 7kW (China/GBT)
السعر العادي
Dhs. 650.00
السعر العادي
سعر البيع
Dhs. 650.00
الضرائب متضمنة.
يتم احتساب الشحن عند الخروج.
كمية
لم نتمكن من تحميل توفر الاستلام
Compatibility: Fits all Chinese EVs and chargers equipped with a standard GBT gun and charging port.

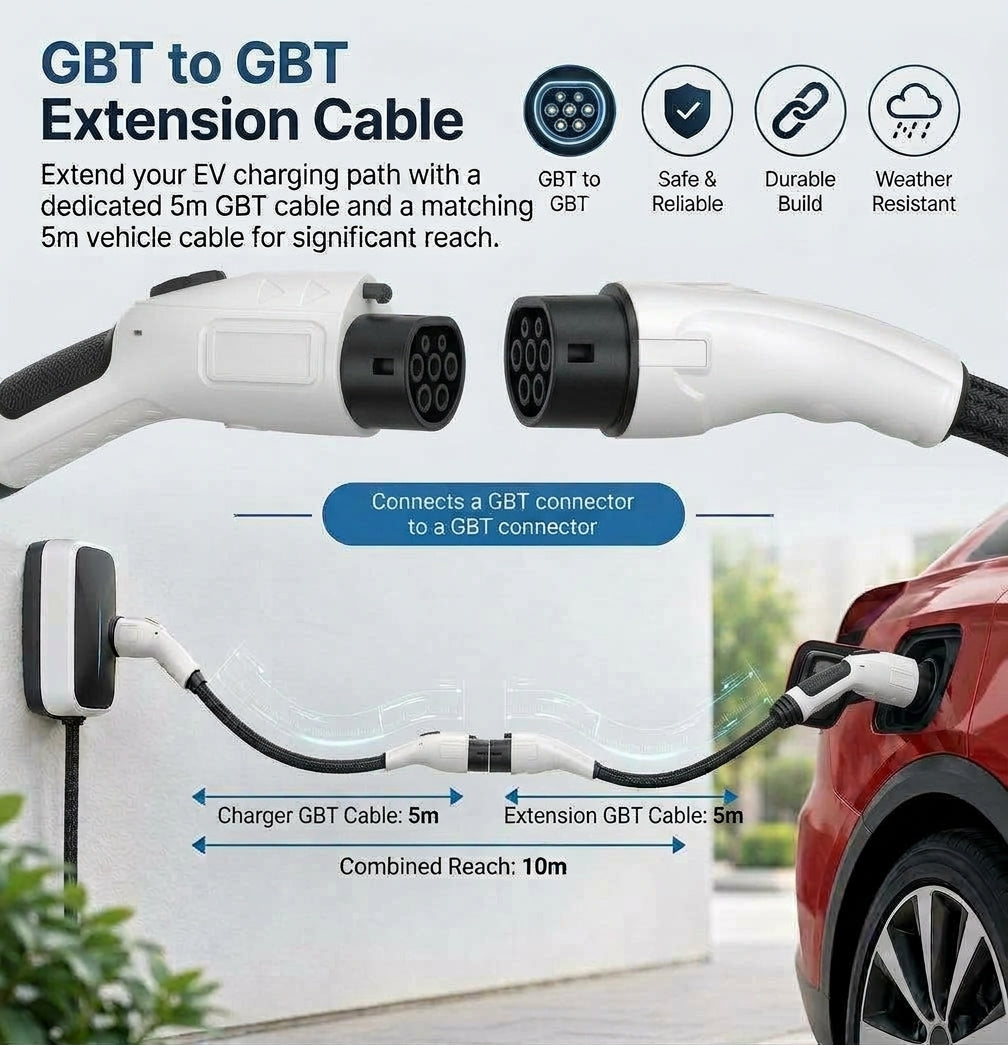

Usage: Instantly add 5 meters of extra reach to your existing GBT charger gun. Plug your wallbox charger handle directly into the extension cable to easily charge hard-to-reach vehicles without moving your car.
Technical Data:
| Category | Parameter | Specification |
| General | Port | GBT |
| RoHS Compliant | Yes | |
| Protection Class | IP55 | |
| Electrical | Rated Current | 32A |
| Operating Voltage | 220V AC | |
| Rated Power | 7kW | |
| Insulation Resistance | >1000MΩ (Measured at DC500V) | |
| Contact Resistance | 0.5m Max | |
| Withstand Voltage | 2500V | |
| Static Resistance (RC) | 680Ω Tolerance: ±3%, ≥0.5% | |
| Mechanical | Coupled Insertion Force | <80N |
| Working Environment Temp. | −40C to +60C | |
| Plastic Shell Fire Rating | UL94 V-0 | |
| Materials | Housing | PC+ABS |
| Gun Head | PA66+20%GF | |
| Conductor | Copper alloy, silver-plated surface |
