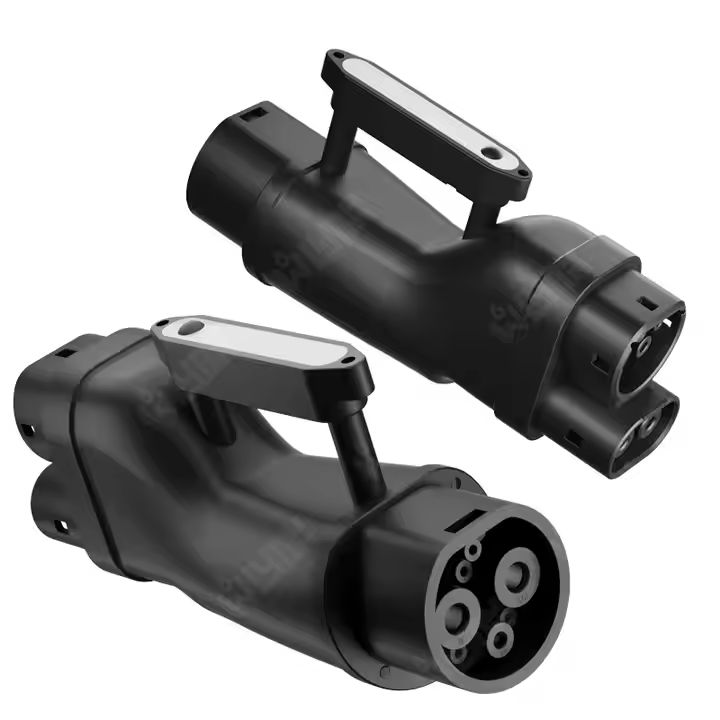

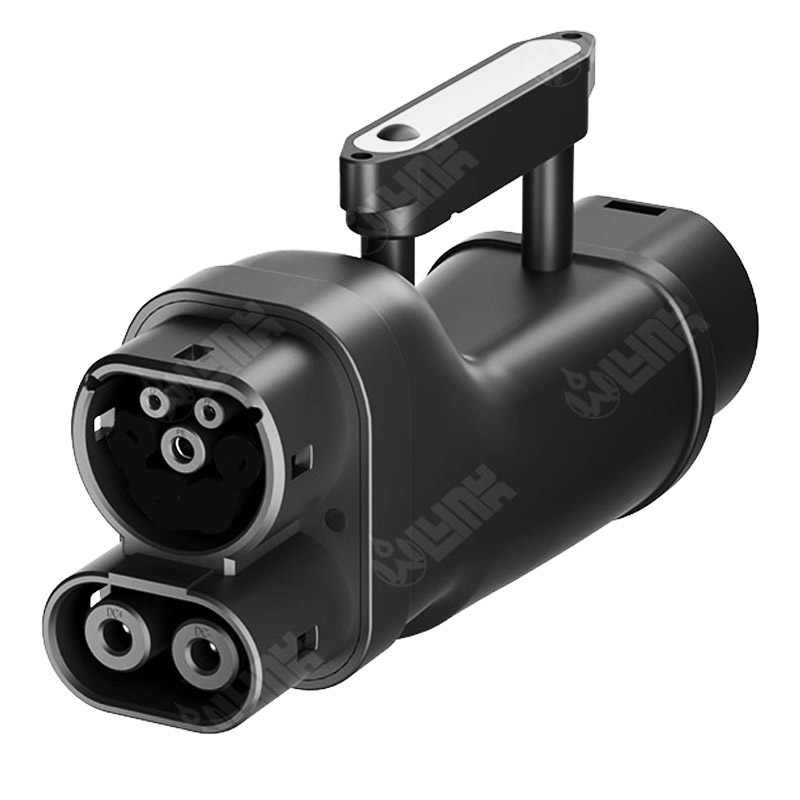

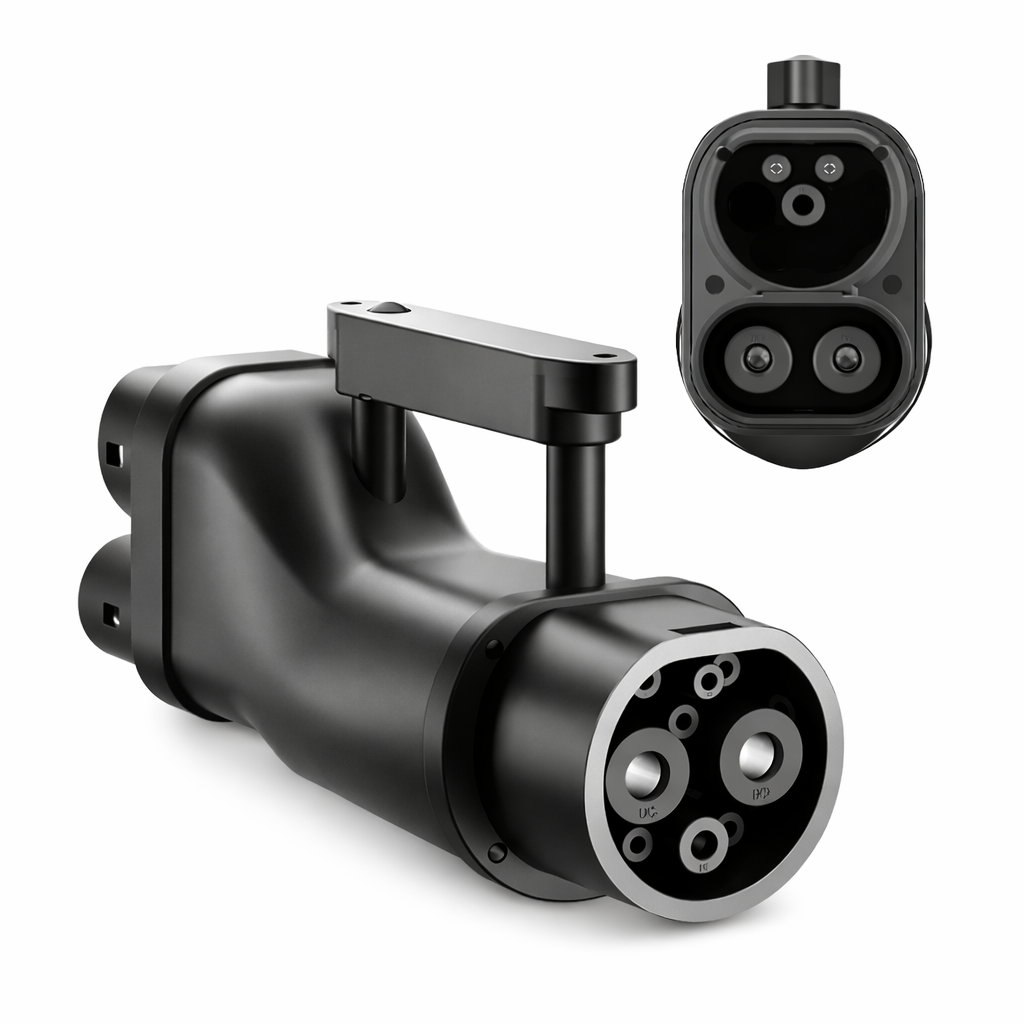

GBT to CCS2 Adapter 250A (GCC EV)

Unlock universal charging compatibility with the robust and reliable GBT-CCS2 Adapter. Engineered for professionals, fleet operators, and EV enthusiasts, this adapter seamlessly bridges the gap between GBT (Guobiao) and CCS2 (Combined Charging System) charging standards. It is the critical link for charging a wide range of electric vehicles at compatible GBT DC fast-charging stations, ensuring you are never limited by plug type.

Built to the highest industrial specifications, the adapter features a durable thermoplastic shell with superior fireproof (UL94 V-0) and waterproof ratings, making it capable of withstanding demanding environments. With a massive 250A current rating and 1000V DC capacity, it supports ultra-fast charging sessions without compromising safety or performance.

Key Features & Specifications:

Universal Compatibility: Enables EVs with CCS2 charging port to connect GBT (Chinese standard) chargersز

Heavy-Duty Performance: Rated for up to 250A Max current and 1000V DC Max voltage, facilitating high-power charging for compatible vehicles.

Premium Safety & Durability:

Fireproof Shell: Thermoplastic housing with a UL94 V-0 rating, the highest standard for flame retardancy.

Weather-Resistant: Designed with a high waterproof grade (IP rating) for reliable operation in various weather conditions.

Efficient Conductivity: Silver-plated copper alloy conductors ensure maximum current flow with minimal loss (Contact Impedance: ≤0.5 mΩ).

Engineered for Reliability:

Stable Temperature: Low terminal temperature rise (<50K) for safe, sustained high-power transfer.

Rugged Design: Operates in a wide temperature range (-30°C to +50°C).

User-Friendly: Ergonomic design with insertion/extraction force under 100N for easier handling.

Compact & Portable: Despite its powerful capabilities, the adapter is designed for portability (Size: 293.9 x 86.5 x 133 mm | Weight: 1.48 kg), making it an essential travel companion.

What’s Included:

1 x GBT-CCS2 Adapter 2.0 Unit

Comprehensive User Instructions

Protective Storage Case

Intended Use & Compatibility:

Primary Use: Converting a GBT charging cable/station output to connect to an electric vehicle with a CCS2 inlet (GCC Specs)

Technical Specifications at a Glance:

Ideal For:

• EV drivers traveling between regions with different charging standards.

• Fleet managers operating international vehicle models.

• EV charging station operators seeking to expand service accessibility.

• As a reliable backup solution for interoperability.
