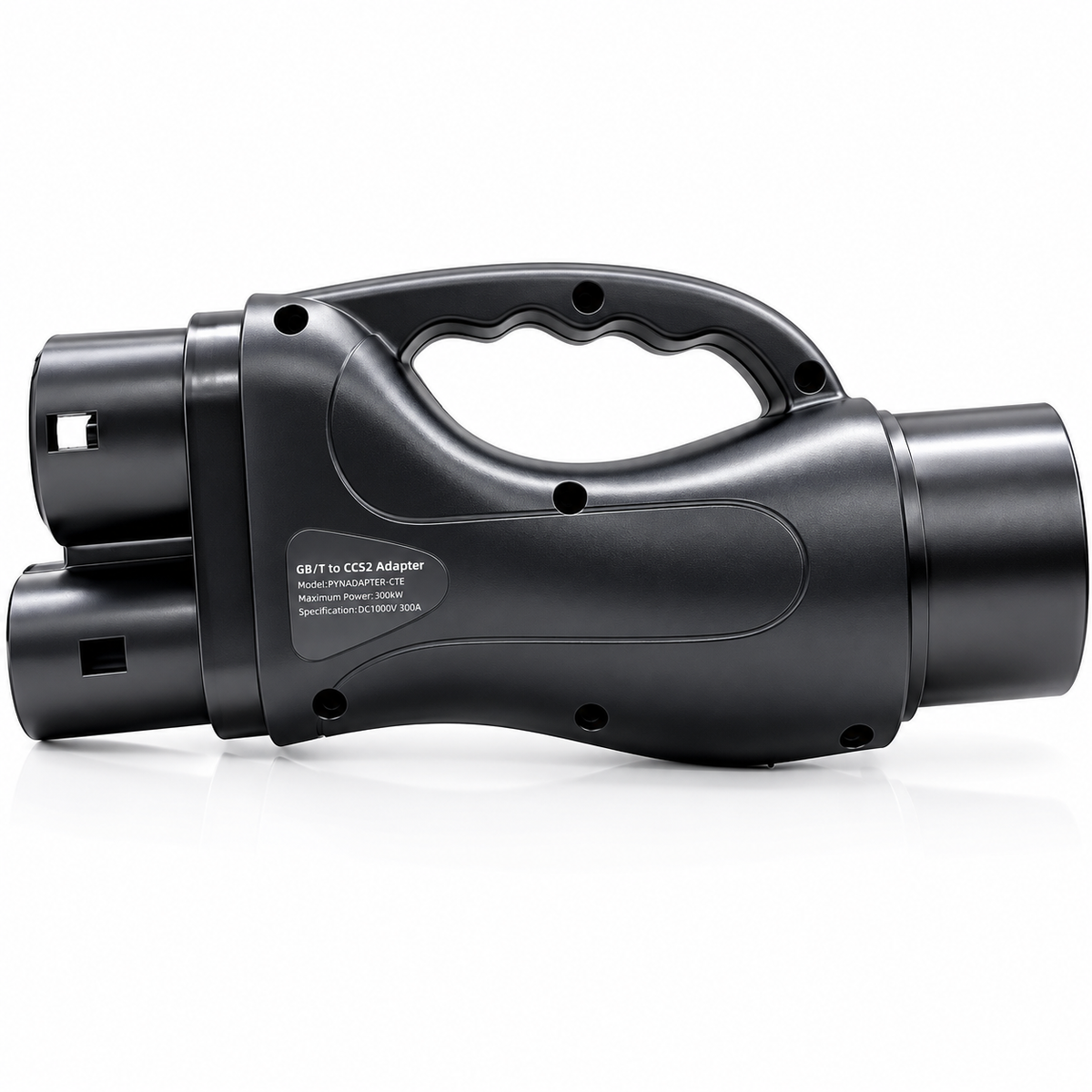

Unlock greater charging flexibility with the GB/T to CCS2 Adapter, designed to enable CCS2-equipped electric vehicles to charge at compatible GB/T DC charging stations. This adapter provides a practical solution for EV drivers who need to access charging infrastructure using different DC charging standards.
Built for high-power DC charging applications, the adapter supports up to 300A DC, 1000V DC, and 300kW maximum charging power. Its durable polyamide housing and IP55 ingress protection help provide reliable operation in demanding charging environments.
Key Features & Specifications
CCS2 to GB/T Charging Compatibility
Designed for electric vehicles with a CCS2 DC charging inlet to connect to compatible GB/T DC charging stations.
High-Power DC Charging
Supports up to 300A DC, 1000V DC, and 300kW maximum charging power, subject to the capabilities and limitations of the vehicle and charging station.
Durable Construction
Constructed with a polyamide shell for a robust and durable design suitable for regular EV charging use.
IP55 Protection
Rated IP55 to provide protection against dust ingress and water exposure when used under appropriate conditions.
Wide Operating Temperature Range
Designed to operate in ambient temperatures from -30°C to +50°C (-22°F to +122°F).
Built-In Temperature Protection
Charging is designed to stop when the adapter's internal working temperature reaches 85°C (185°F), helping protect the adapter during operation.
Status Indicator
The integrated indicator provides charging-status information. The red indicator flashes during the charging process and remains illuminated when charging is active.
Firmware Upgrade Capability
The adapter supports system upgrades through its Type-C connection, allowing compatible firmware to be updated when required.
Compact, Portable Design
Product dimensions are approximately 265.3 × 97.8 × 129.5 mm (L × W × H), with a net product weight of approximately 3.3 kg.
Technical Specifications
| Parameter |
Specification |
| Product Type |
GB/T to CCS2 DC Charging Adapter |
| Maximum Charging Power |
300kW |
| Maximum Voltage |
1000V DC |
| Maximum Current |
300A DC |
| Operating Temperature |
-30°C to +50°C |
| Internal Temperature Protection |
Charging stops at 85°C internal temperature |
| Shell Material |
Polyamide |
| Ingress Protection |
IP55 |
| Certification Standard |
CE |
| Product Dimensions |
265.3 × 97.8 × 129.5 mm |
| Net Product Weight |
3.3 kg |
| Package Dimensions |
310 × 115 × 170 mm |
| Total Package Weight |
3.5 kg |
What's Included
- 1 × GB/T to CCS2 Adapter
- 1 × User Manual
- 1 × Type-C to USB Transmission Cable
- 1 × USB Memory
