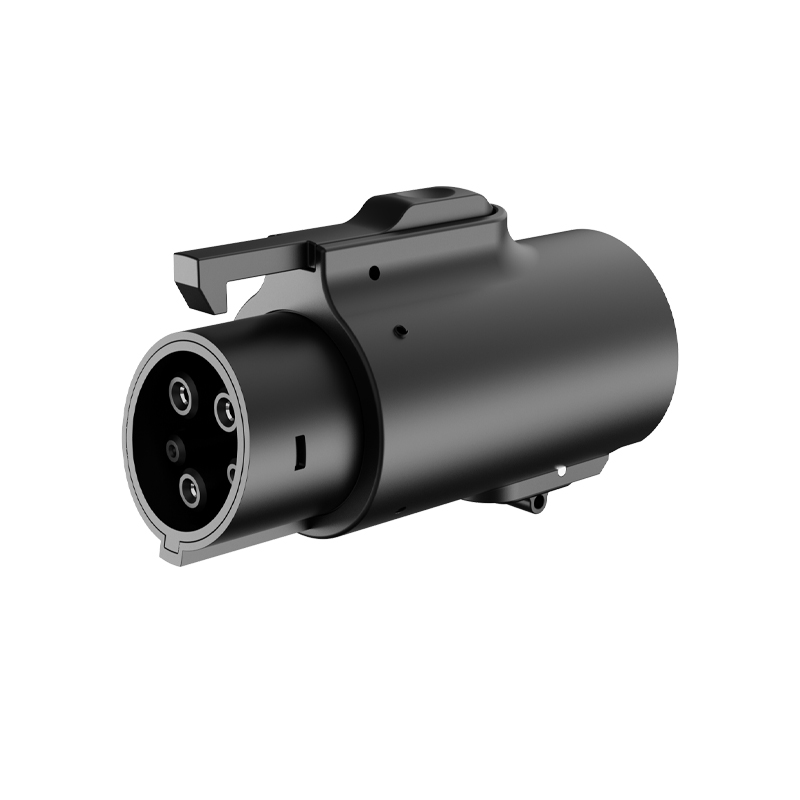

NACS to Type 1 Adapter 7kW (US/Korea/J1772)

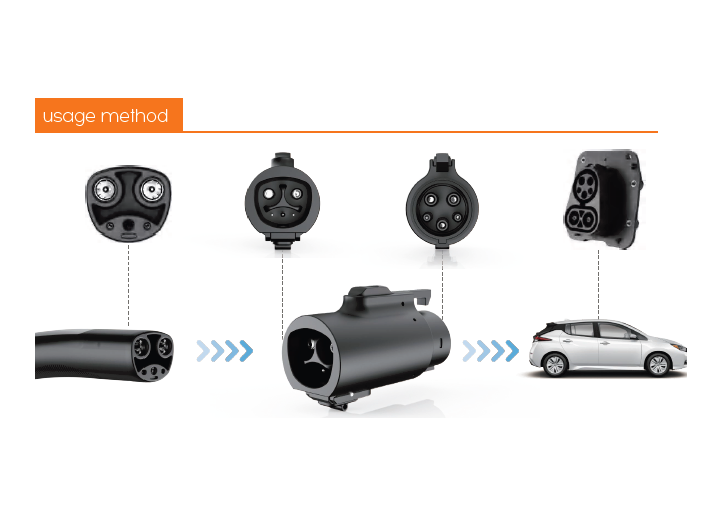

The NACS to J1772 Adapter allows you to charge any North American electric vehicle equipped with a standard J1772 charging port using US Tesla Chargers (NACS)

Key Features & Specifications:

Universal AC Charging Access: Enables any J1772-equipped EV to charge from Tesla/NACS AC charging sources.

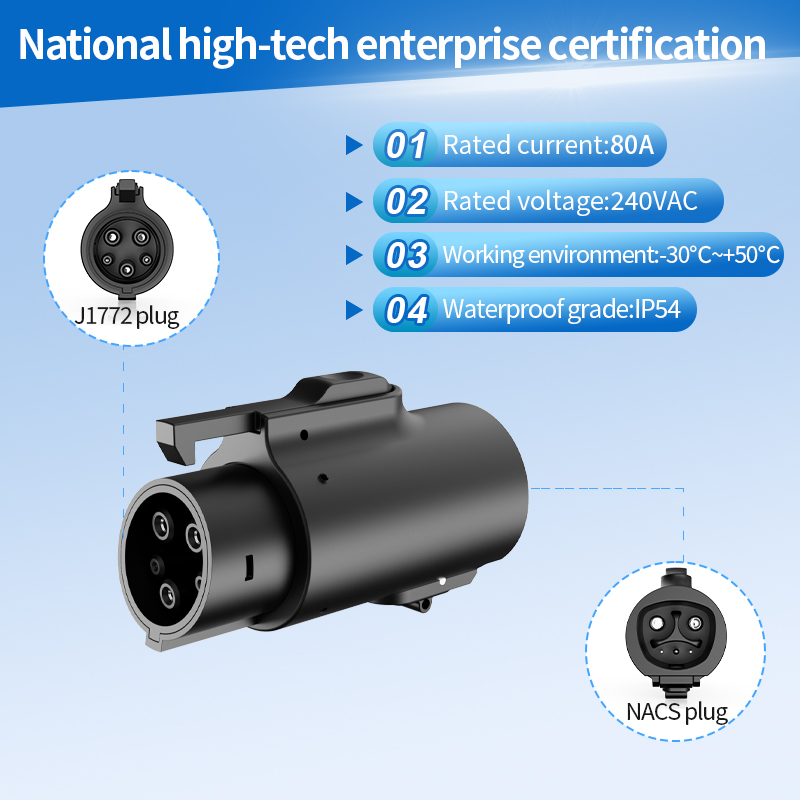

High-Power AC Ready: Rated for 240V AC and 80A continuous current, supporting high-power Level 2 AC charging for faster home and destination charging.

Safe & Reliable Design:

Robust Housing: Constructed with high-grade, flame-retardant thermoplastic for durability and safety.

Weather-Resistant: Features a waterproof rating suitable for outdoor use in various conditions.

Efficient Conductivity: Silver-plated copper alloy conductors ensure minimal energy loss and optimal performance (Contact Impedance: ≤0.5 mΩ).

User-Friendly & Portable:

Easy Handling: Designed with manageable insertion and extraction force (<100N).

Compact & Lightweight: Sleek design (125.7 x 25 x 75.1 mm) and light weight (0.5 kg) make it easy to store in your glove compartment or charging bag.

Plug-and-Play Simplicity: No configuration needed. A passive mechanical adapter for immediate use.

What’s Included:

1 x NACS (Female Socket) to J1772 (Male Plug) Adapter

Protective Storage Pouch

Quick Start Guide

Technical Specifications at a Glance
