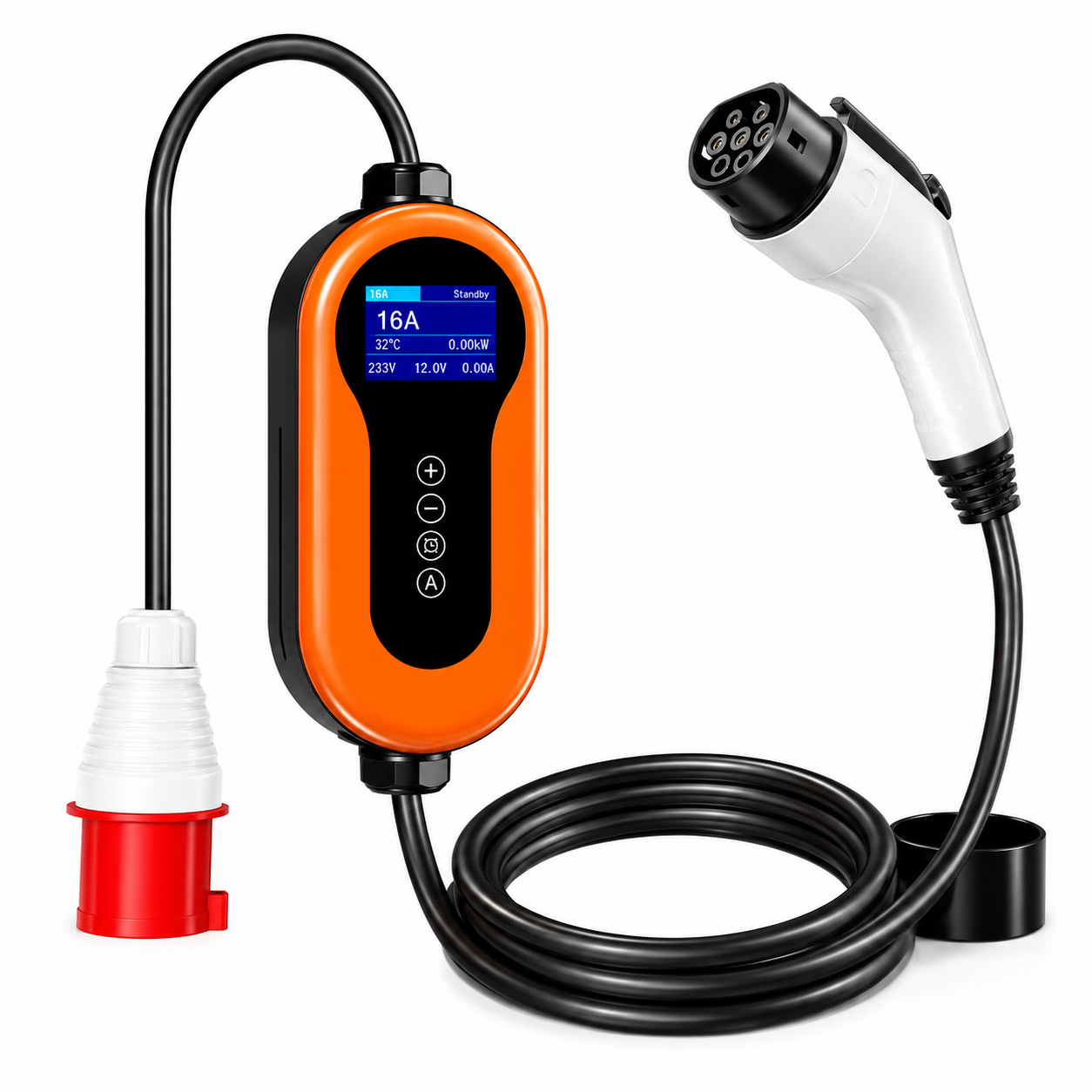

Portable EV Charger 11kW (GCC/ Type 2)
Portable EV Charger 11kW (GCC/ Type 2)
Couldn't load pickup availability
Engineered for reliability and cross-standard compatibility, This Type-2 portable charger delivers up to 11kW of AC 3-phase charging power for electric vehicles that support 3-phase system. Built with silver-plated copper alloy terminals, a UL 94V-0 flame-retardant shell, and IP54-rated mating interface, it’s designed for daily use in harsh environments.
Key Engineering Features:
1. Wide Electrical Compatibility
Rated Output Power: 1.8 kW – 11 kW (3 Phase)
Rated Current: 6A – 16A (adjustable)
Rated Voltage: AC 380V–440V (three-phase)
Supported Interfaces: Type-2 (GCCstandard)
Compatible Vehicle Brands: All GCC EV and PHEV (Tesla, BMW, BYD, ROX and others)
2. Robust Mechanical & Environmental Design
Terminal Material: Copper alloy with silver-plated surface — minimizes contact impedance to ≤ 0.5 mΩ
Mechanical Life: >10,000 cycles (unplugged)
Insertion & Extraction Force: < 100 N (safe and ergonomic)
Working Temperature: -30°C to +50°C (full performance range)
Terminal Temperature Rise: < 50 K (safety compliant)
Fireproof Grade (Shell): UL 94V-0
Waterproof Grade (Mated): IP54
3. Smart App Control (Wi-Fi)
Monitor and control charging via the Smart Life app
4. Electrical Specifications
| Parameter | Value |
|---|---|
| Rated Output Power | 1.8 kW – 11 kW (adjustable) |
| Rated Current | 6A – 16A (adjustable) |

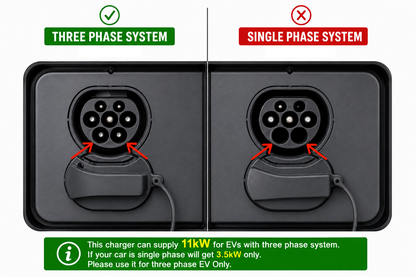

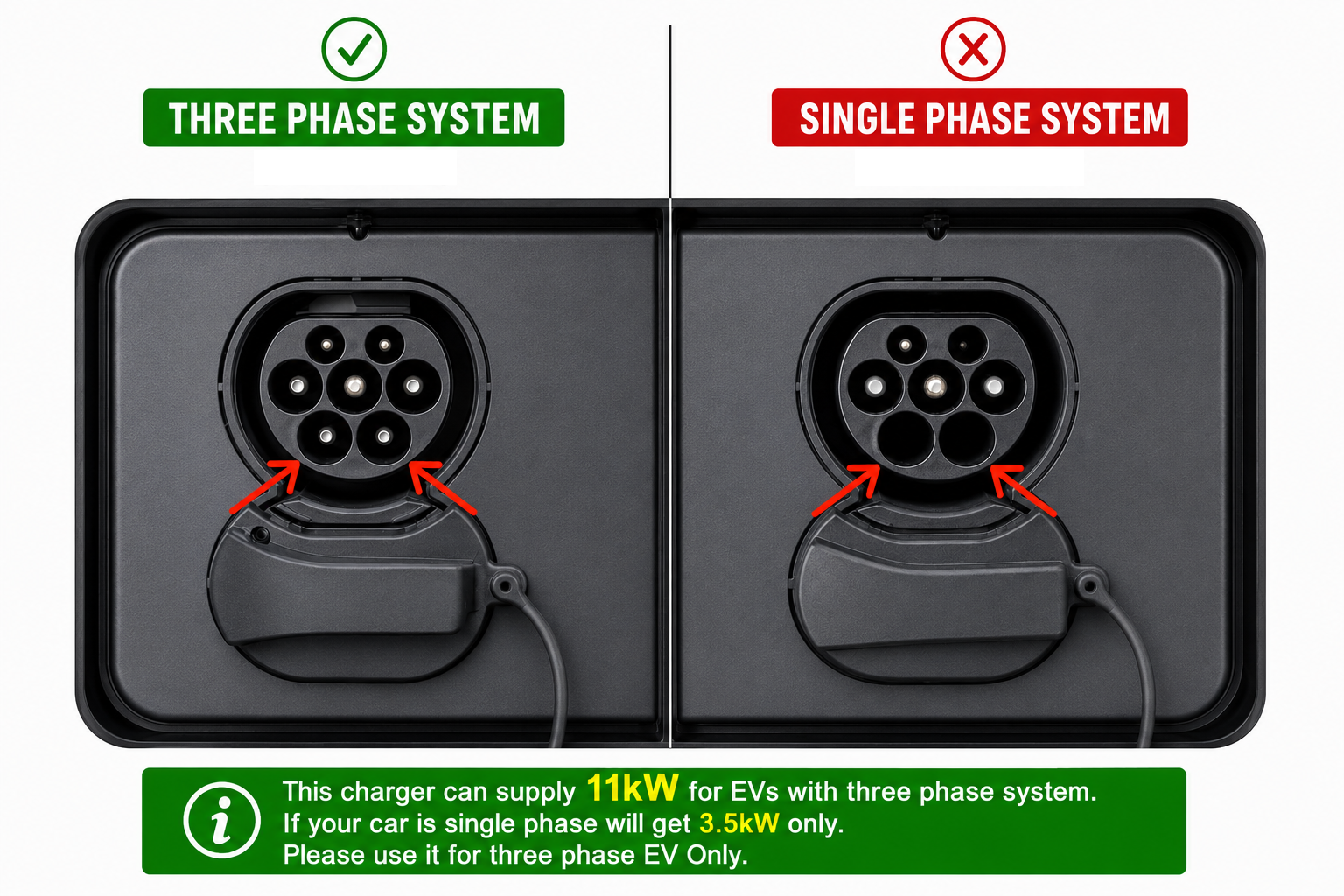

| EV Power System | 3-Phase |
| Rated Voltage (Three-Phase) | AC 380V – 440V |
| Supported Charging Interface | Type-2 (GCC) |
| Contact Impedance | ≤ 0.5 mΩ (max) |
The charger automatically detects single-phase or three-phase input and adjusts internal switching accordingly. Current selection is user-configurable to match available circuit capacity.
5. Mechanical Specifications
| Parameter | Value |
|---|---|
| Connector Housing Material | Thermoplastic plastic, UL 94V-0 |
| Conductor Material | Copper alloy, silver-plated surface |
| Cable Length | 5m |
| Insertion Force | < 100 N |
| Extraction Force | < 100 N |
| Mechanical Life (Unplugged) | > 10,000 cycles |
| Mating Waterproof Rating | IP54 |
| Terminal Temperature Rise | < 50 K |
Silver-plated terminals minimize contact resistance and provide corrosion resistance.
6. Environmental & Thermal Performance
| Parameter | Value |
|---|---|
| Working Ambient Temperature | -30°C to +50°C |
| Terminal Temperature Rise (at rated current) | < 50 K |
| Fireproof Grade (Shell) | UL 94V-0 |
The charger maintains full electrical performance across the -30°C to +50°C ambient range. Temperature rise at terminals remains within < 50 K under continuous rated load, complying with Type-2 thermal endurance requirements.
7. Physical Dimensions & Packaging
| Parameter | Value |
|---|---|
| Control Box Dimensions (L×W×H) | 210 × 95 × 55 mm (nominal) |
| Packaging Dimensions (L×W×H) | 32 × 22 × 12 cm |
| Packaging Weight | ≈ 2.5 kg |
| Quantity per Package | 1 piece |
