EV FOR LESS

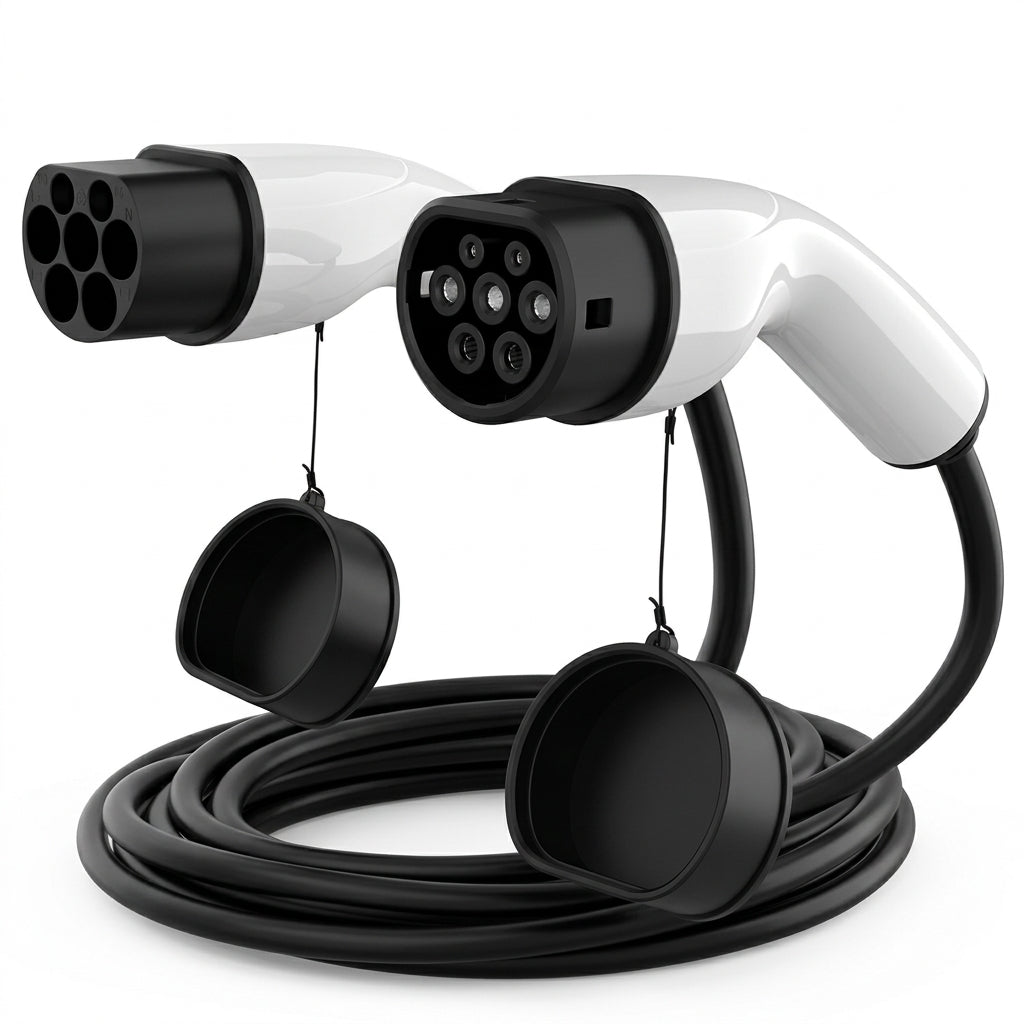

Type 2 to Type 2 Extension Cable 5m, 7kW (GCC/Type 2)
Type 2 to Type 2 Extension Cable 5m, 7kW (GCC/Type 2)
Regular price
Dhs. 650.00
Regular price
Sale price
Dhs. 650.00
Taxes included.
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability

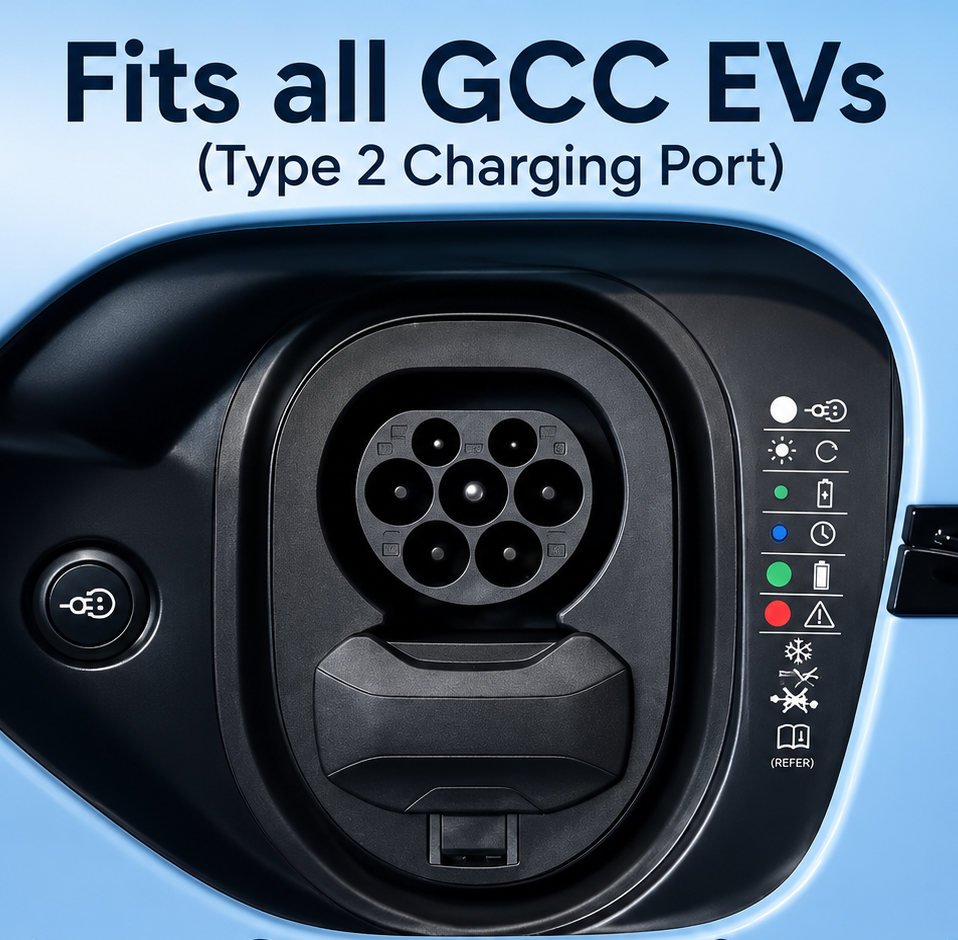

Compatibility: Fits all GCC and EU EVs and chargers equipped with a standard Type 2 gun and charging port.

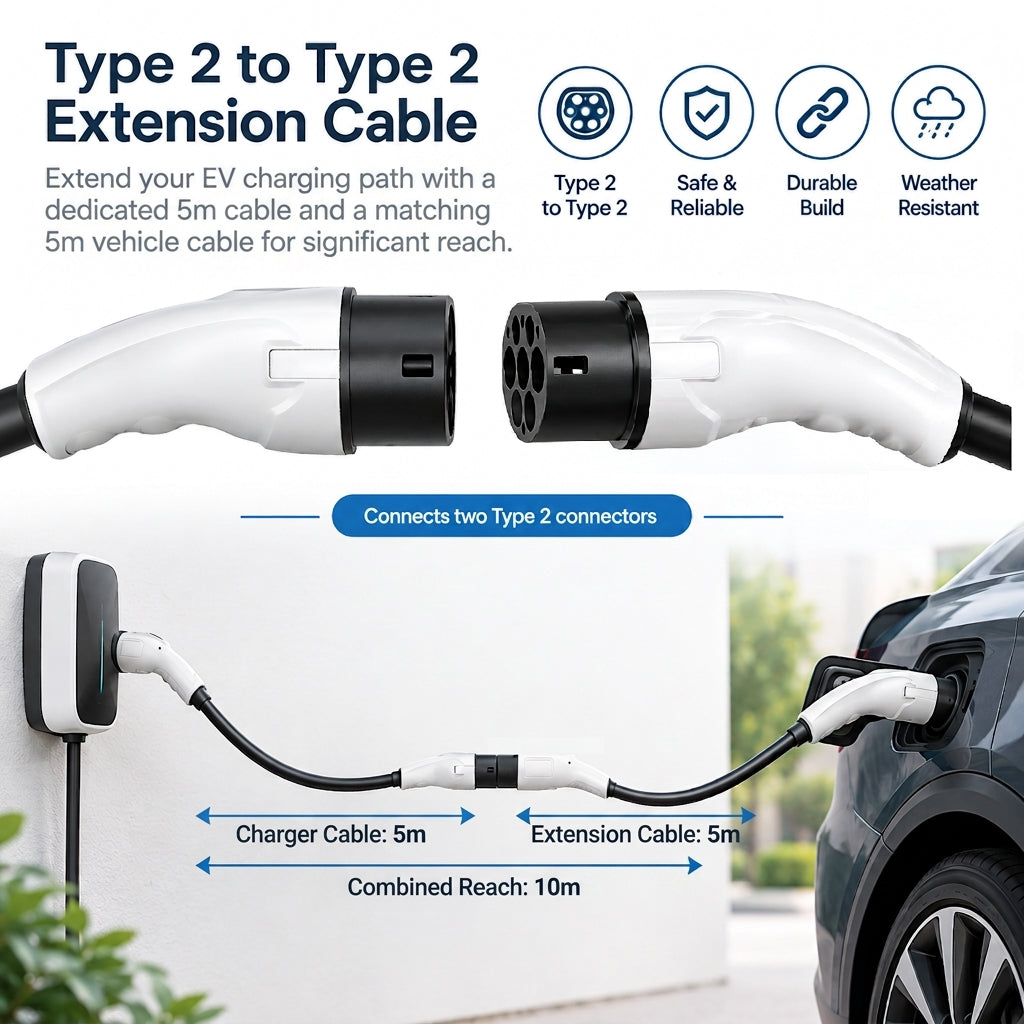

Usage: Instantly add 5 meters of extra reach to your existing Type 2 charger gun. Plug your wallbox charger handle directly into the extension cable to easily charge hard-to-reach vehicles without moving your car.
Technical Data:
| Category | Parameter | Specification |
| General | Design Standard | IEC 62196-2 |
| RoHS Compliant | Yes | |
| Protection Class | IP55 | |
| Electrical | Rated Current | 32A |
| Operating Voltage | 240 AC | |
| Rated Power | 7kW | |
| Insulation Resistance | >1000MΩ (Measured at DC500V) | |
| Contact Resistance | 0.5m Max | |
| Withstand Voltage | 2500V | |
| Static Resistance (RC) | 680Ω Tolerance: ±3%, ≥0.5% | |
| Mechanical | Coupled Insertion Force | <80N |
| Working Environment Temp. | −40C to +60C | |
| Plastic Shell Fire Rating | UL94 V-0 | |
| Materials | Housing | PC+ABS |
| Gun Head | PA66+20%GF | |
| Conductor | Copper alloy, silver-plated surface |
